一、GPIO

需要知道的是，这个蓝牙开发板里面其实使用的也是AliOSThings的内核，所以对于GPIO的一些接口函数什么的，跟前面学习AliOSThings的时候是一样的。

1. 官方文档

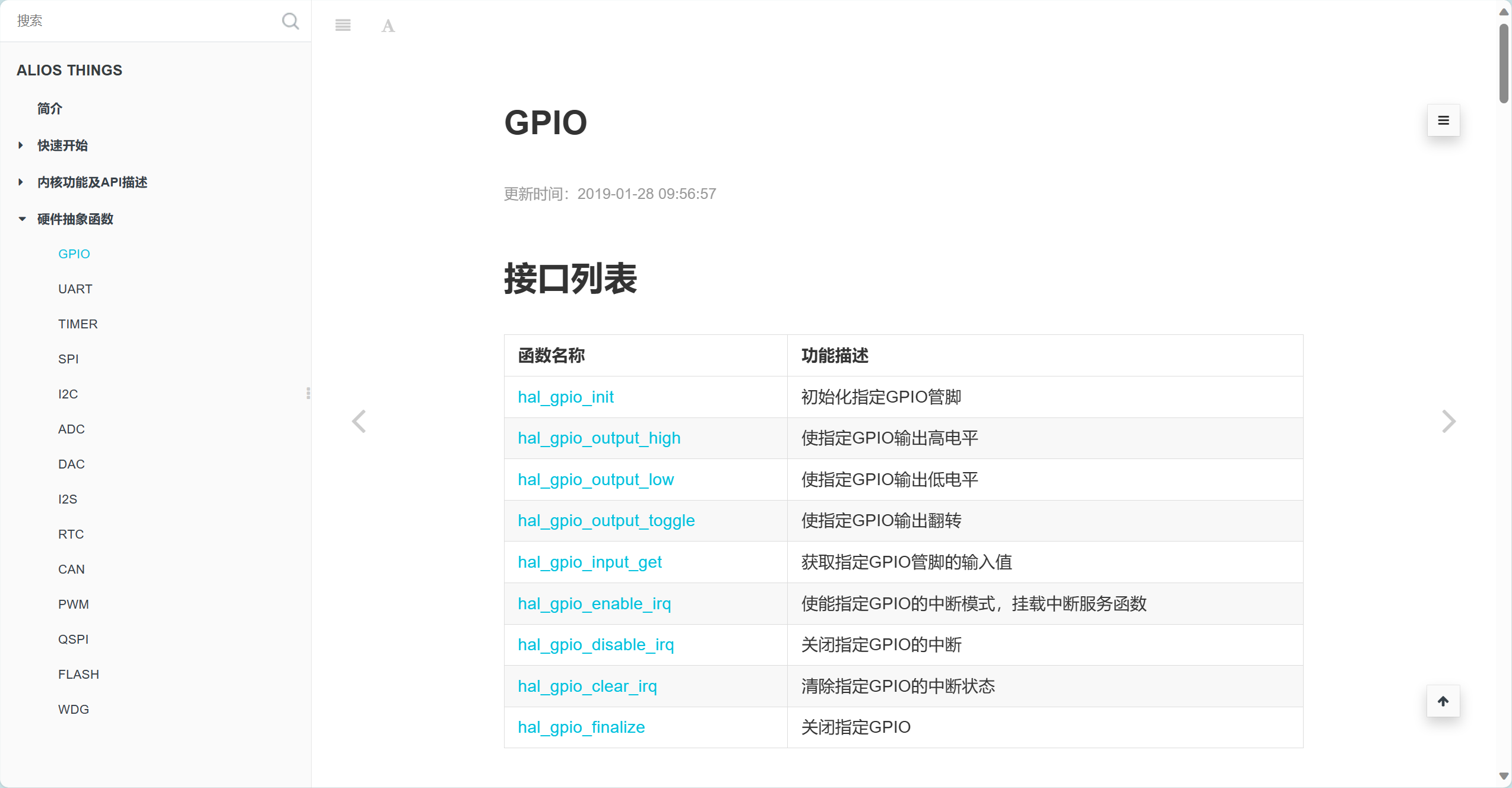

我们可以看一下官方文档：GPIO · 开发指南 (alicdn.com)，这里有对GPIO接口函数的详细说明：

image-20231224192923184

2. 使用实例

2.1 led.c

点击查看详情
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
#include <stdio.h>
#include <aos/aos.h>
#include <hal/soc/gpio.h>
#include "drivers/8258/gpio_8258.h"

#define LED0_PIN TC825X_GET_PIN_NUM(GPIO_PB4) // RED——PC1
#define LED1_PIN TC825X_GET_PIN_NUM(GPIO_PB5) // GREEN——PC1
#define LED2_PIN TC825X_GET_PIN_NUM(GPIO_PC1) // BLUE——PC1

static gpio_dev_t led_dev[3];

int32_t sys_led_init(void)
{
    int32_t ret = 0;
    led_dev[0].port = LED0_PIN; /* gpio port config */
    led_dev[0].config = OUTPUT_PUSH_PULL;/* set as output mode */
    ret = hal_gpio_init(&led_dev[0]); /* configure GPIO with the given settings */
    if (ret != 0) {
        printf("gpio init error !\n");
    }

    led_dev[1].port = LED1_PIN; /* gpio port config */
    led_dev[1].config = OUTPUT_PUSH_PULL;/* set as output mode */
    ret = hal_gpio_init(&led_dev[1]); /* configure GPIO with the given settings */
    if (ret != 0) {
        printf("gpio init error !\n");
    }

    led_dev[2].port = LED2_PIN; /* gpio port config */
    led_dev[2].config = OUTPUT_PUSH_PULL;/* set as output mode */
    ret = hal_gpio_init(&led_dev[2]); /* configure GPIO with the given settings */
    if (ret != 0) {
        printf("gpio init error !\n");
    }

    return 0;
}
int application_start(int argc, char **argv)
{
    printf("BUILD_TIME:%s\n", __DATE__","__TIME__);
    sys_led_init();
    while(1)
    {
        hal_gpio_output_toggle(&led_dev[0]);
        hal_gpio_output_toggle(&led_dev[1]);
        hal_gpio_output_toggle(&led_dev[2]);
        aos_msleep(1000);
    }
    return 0;
}

2.2 led.mk

点击查看详情
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
NAME := led

$(NAME)_COMPONENTS  += genie_app bluetooth.bt_host bluetooth.bt_mesh yloop cli

$(NAME)_INCLUDES += ../../../../genie_app \
					../../../../genie_app/base \
					../../../../genie_app/bluetooth/host \
					../../../../genie_app/bluetooth/mesh

$(NAME)_SOURCES  := led.c

ifeq ($(HOST_MCU_FAMILY),ch6121)
bt_host_tinycrypt = 0
else ifeq ($(HOST_MCU_FAMILY),tg7100b)
bt_host_tinycrypt = 0
else
ble = 1
bt_mesh = 1
endif
en_bt_smp = 1

# Host configurations
GLOBAL_DEFINES += CONFIG_BLUETOOTH
ifeq ($(HOST_MCU_FAMILY),ch6121)
GLOBAL_DEFINES += CONFIG_BT_RX_BUF_LEN=252
GLOBAL_DEFINES += CONFIG_BT_L2CAP_TX_MTU=244
GLOBAL_DEFINES += CONFIG_BT_MESH_ADV_BLOCK
else ifeq ($(HOST_MCU_FAMILY),tg7100b)
GLOBAL_DEFINES += CONFIG_BT_RX_BUF_LEN=252
GLOBAL_DEFINES += CONFIG_BT_L2CAP_TX_MTU=244
GLOBAL_DEFINES += CONFIG_BT_MESH_ADV_BLOCK
else
GLOBAL_DEFINES += CONFIG_BT_SMP
GLOBAL_DEFINES += CONFIG_BT_HCI_VS_EXT
GLOBAL_DEFINES += CONFIG_BT_TINYCRYPT_ECC
endif
GLOBAL_DEFINES += CONFIG_BT_CONN
#GLOBAL_DEFINES += CONFIG_BT_CENTRAL
GLOBAL_DEFINES += CONFIG_BT_PERIPHERAL
#GLOBAL_DEFINES += CONFIG_BLE_50


# Mesh function select
GLOBAL_DEFINES += CONFIG_BT_MESH
GLOBAL_DEFINES += CONFIG_BT_MESH_PROV
GLOBAL_DEFINES += CONFIG_BT_MESH_PB_ADV
GLOBAL_DEFINES += CONFIG_BT_MESH_PB_GATT
GLOBAL_DEFINES += CONFIG_BT_MESH_PROXY
GLOBAL_DEFINES += CONFIG_BT_MESH_GATT_PROXY
GLOBAL_DEFINES += CONFIG_BT_MESH_RELAY
#GLOBAL_DEFINES += CONFIG_BT_MESH_FRIEND
#GLOBAL_DEFINES += CONFIG_BT_MESH_LOW_POWER
#GLOBAL_DEFINES += CONFIG_BT_MESH_SHELL
#GLOBAL_DEFINES += CONFIG_BT_MESH_BQB
#GLOBAL_DEFINES += CONFIG_BT_MESH_IV_UPDATE_TEST

# Mesh foundation model select
GLOBAL_DEFINES += CONFIG_BT_MESH_CFG_SRV
GLOBAL_DEFINES += CONFIG_BT_MESH_HEALTH_SRV

# Mesh debug message enable
#GLOBAL_DEFINES += USE_BT_MESH_CUSTOM_LOG
GLOBAL_DEFINES += GENIE_DEBUG_COLOR
GLOBAL_DEFINES += MESH_DEBUG_RX
GLOBAL_DEFINES += MESH_DEBUG_TX
GLOBAL_DEFINES += MESH_DEBUG_PROV

#GLOBAL_DEFINES += CONFIG_INIT_STACKS
#GLOBAL_DEFINES += CONFIG_PRINTK

GLOBAL_INCLUDES += ../

GLOBAL_DEFINES += PROJECT_SW_VERSION=0x00010000
GLOBAL_DEFINES += PROJECT_SECRET_KEY=\"00112233445566770011223344556677\"

MESH_MODEL_GEN_ONOFF_SRV = 1
MESH_MODEL_DIABLE_TRANS = 1
#MESH_MODEL_LIGHTNESS_SRV = 1
#MESH_MODEL_CTL_SRV = 1
#MESH_MODEL_VENDOR_SRV = 1

ALI_SIMPLE_MODLE = 1

GLOBAL_DEFINES += GENIE_OLD_AUTH

3. 编译工程

1
aos make bluetooth.led@tc825x

4. 烧录程序

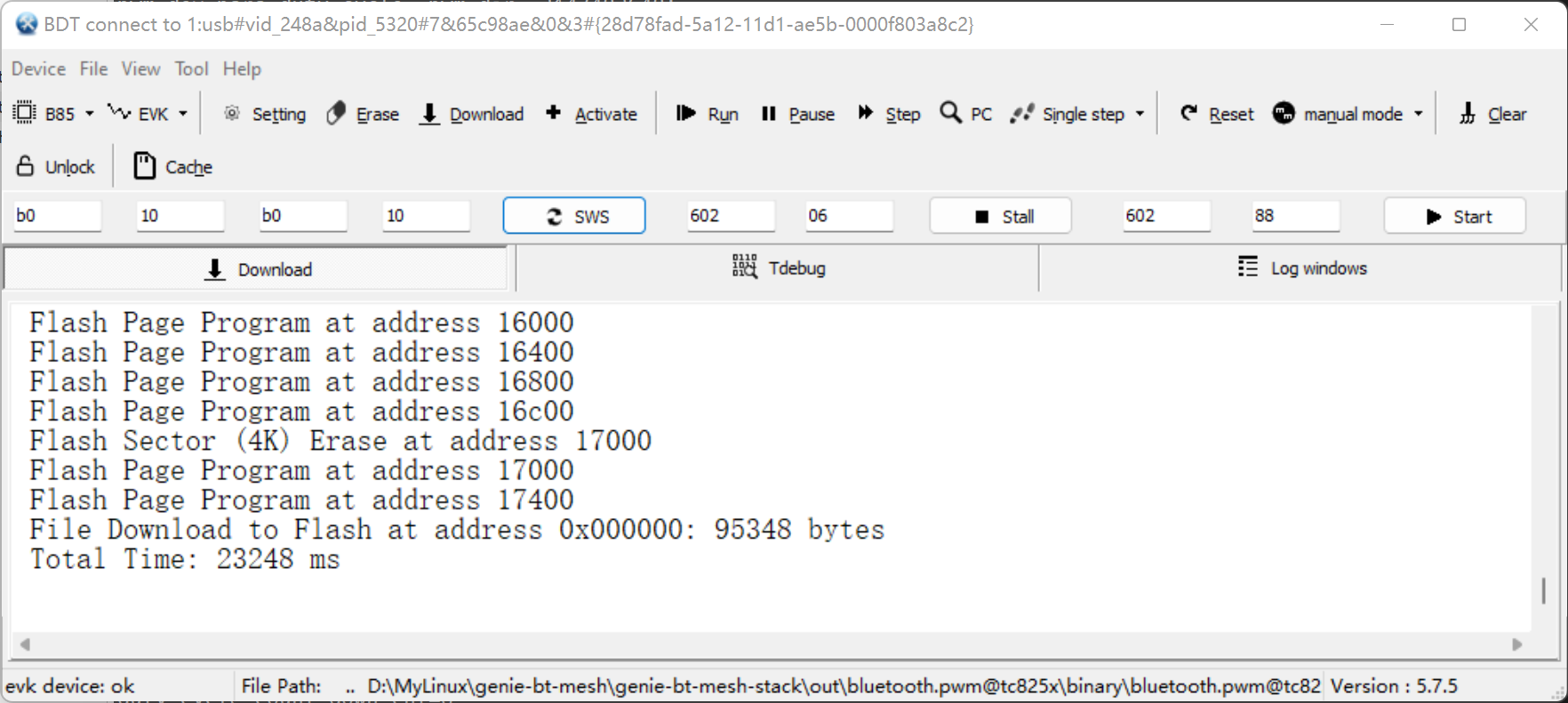

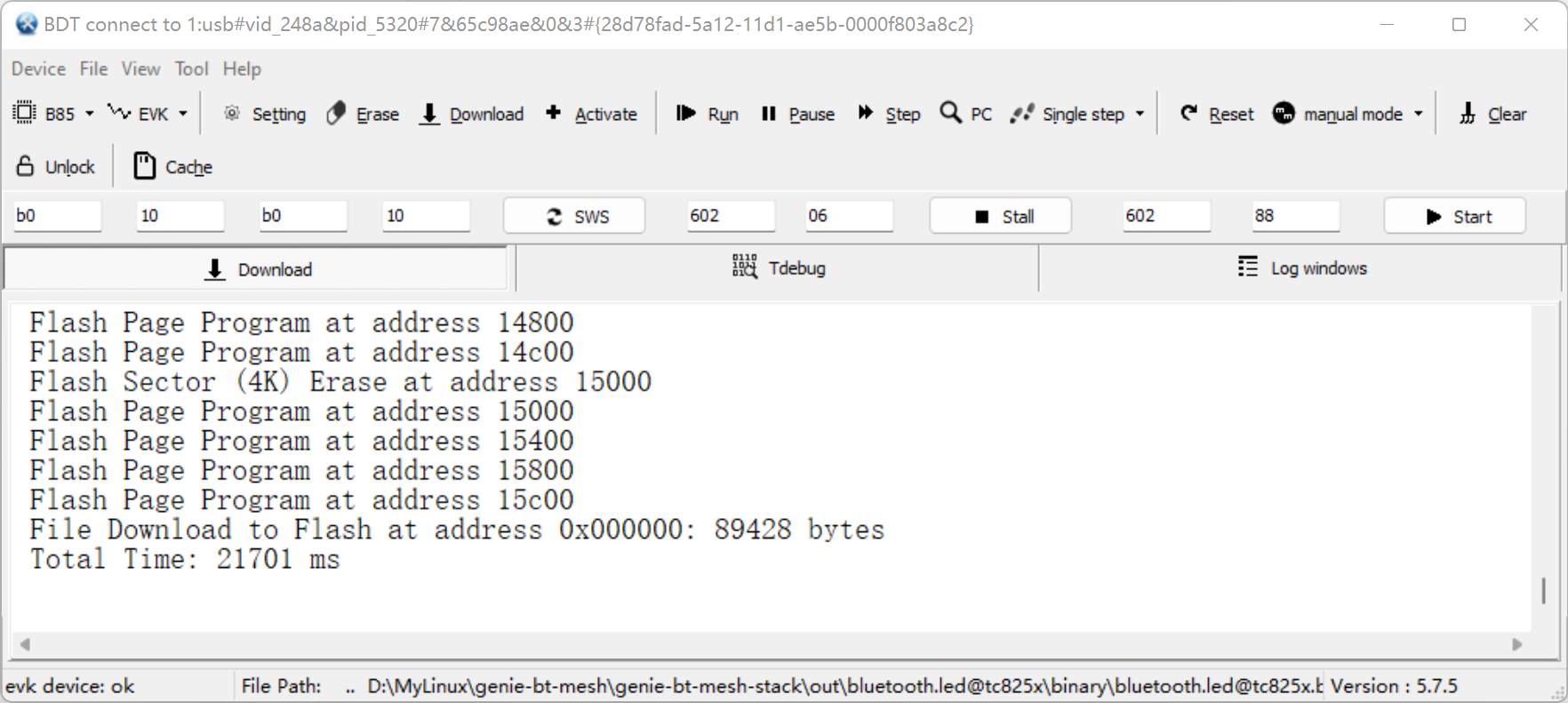

image-20231224194249860

5. 实验现象

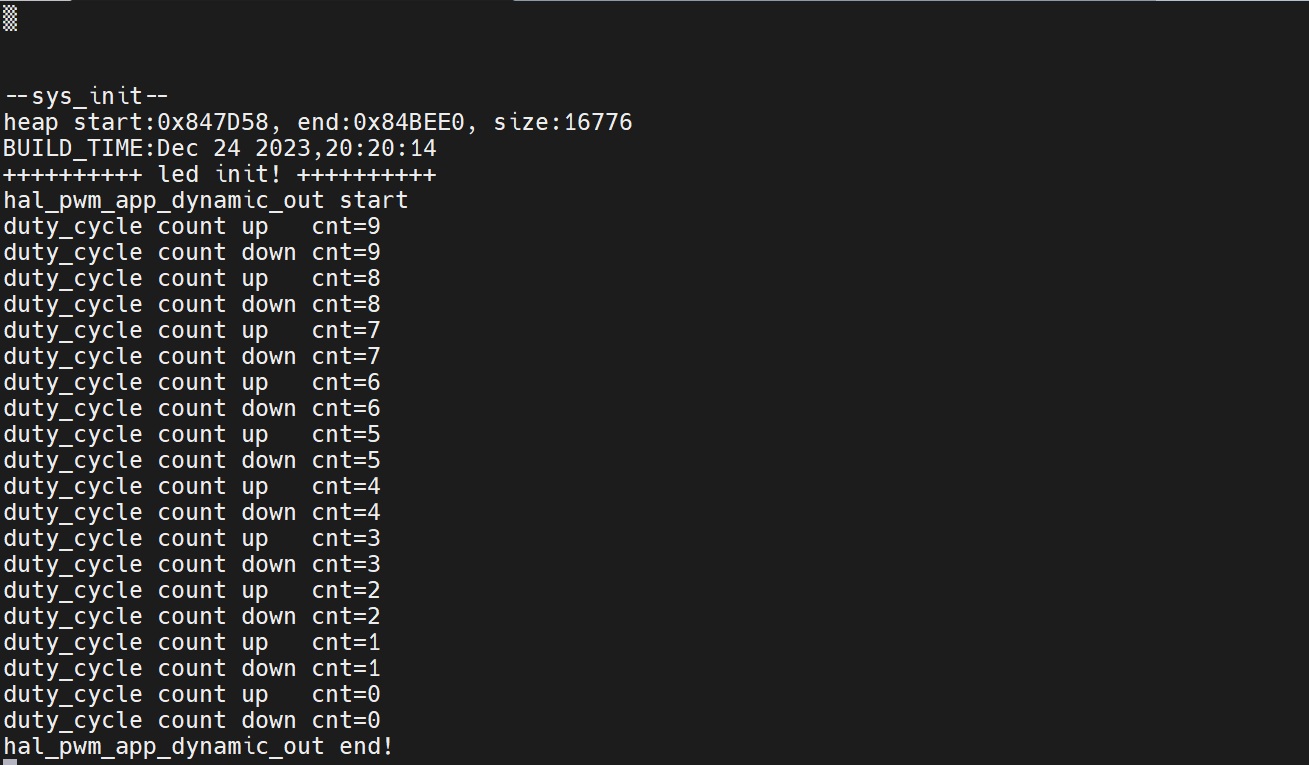

串口会有以下打印信息：

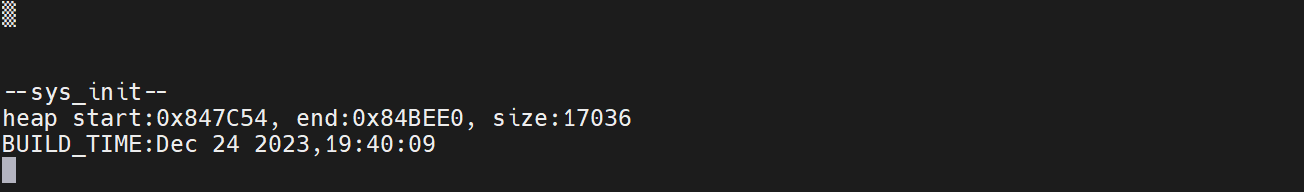

image-20231224194329068

然后我们会看到三个灯同时间隔1秒闪烁。

二、PWM

1. 官方文档

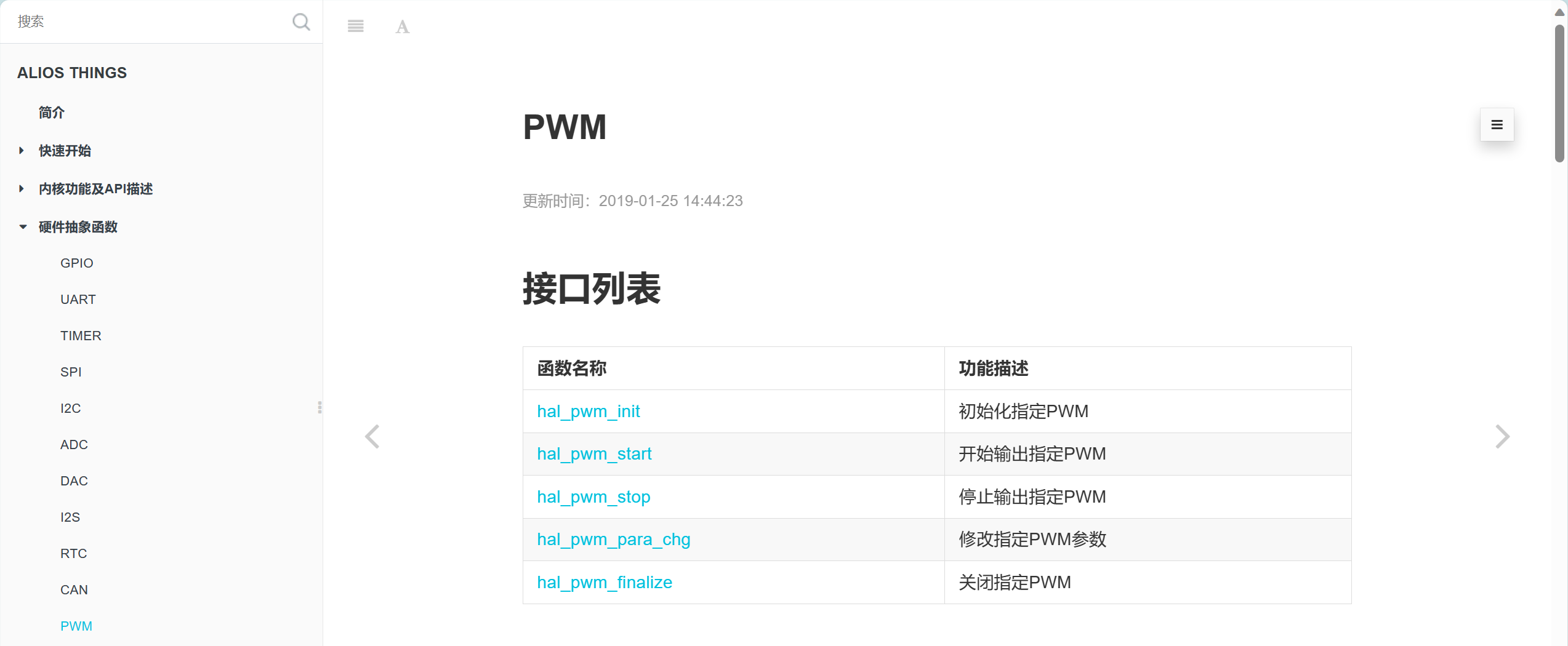

文档接口说明在这里：PWM · 开发指南 (alicdn.com)

image-20231224194453787

2. 使用实例

2.1 pwm.c

点击查看详情
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
#include <stdio.h>
#include <aos/aos.h>
#include <hal/soc/gpio.h>
#include <hal/soc/pwm.h>
#include "drivers/8258/gpio_8258.h"

#define BLUE_LED_PWM
#define LED0_PIN TC825X_GET_PIN_NUM(GPIO_PB4) // RED——PC1
#define LED1_PIN TC825X_GET_PIN_NUM(GPIO_PB5) // GREEN——PC1
#define LED2_PIN TC825X_GET_PIN_NUM(GPIO_PC1) // BLUE——PC1

static gpio_dev_t led_dev[3] = {0};

int32_t sys_led_init(void)
{
    int32_t ret = 0;
    led_dev[0].port = LED0_PIN; /* gpio port config */
    led_dev[0].config = OUTPUT_PUSH_PULL;/* set as output mode */
    ret = hal_gpio_init(&led_dev[0]); /* configure GPIO with the given settings */
    if (ret != 0) {
        printf("gpio init error !\n");
    }

    led_dev[1].port = LED1_PIN; /* gpio port config */
    led_dev[1].config = OUTPUT_PUSH_PULL;/* set as output mode */
    ret = hal_gpio_init(&led_dev[1]); /* configure GPIO with the given settings */
    if (ret != 0) {
        printf("gpio init error !\n");
    }
#ifndef BLUE_LED_PWM
    led_dev[2].port = LED2_PIN; /* gpio port config */
    led_dev[2].config = OUTPUT_PUSH_PULL;/* set as output mode */
    ret = hal_gpio_init(&led_dev[2]); /* configure GPIO with the given settings */
    if (ret != 0) {
        printf("gpio init error !\n");
    }
#endif
    printf("++++++++++ led init! ++++++++++\n");
    return ret;
}

#ifdef BLUE_LED_PWM
void hal_pwm_app_dynamic_out(void)
{
    int cnt;
    int32_t ret;
    pwm_dev_t pwm = {0};

    printf("hal_pwm_app_dynamic_out start\r\n");

    pwm.port = LED2_PIN;
    pwm.config.freq = 1000;
    pwm.config.duty_cycle = 0.00;
    pwm.priv = NULL;

    ret = hal_pwm_init(&pwm);
    if(ret){
        printf("hal_pwm_init fail,ret:%d\r\n",ret);
        return;
    }

    hal_pwm_start(&pwm);

    cnt = 10;
    while (cnt--) {
        printf("duty_cycle count up   cnt=%d\r\n", cnt);
        pwm_config_t para = {0.000, 1000};
        for (int i = 0; i < 100; i++) {
            para.duty_cycle += 0.01;
            aos_msleep(10);
            hal_pwm_para_chg(&pwm, para);
        }

        printf("duty_cycle count down cnt=%d\r\n", cnt);

        para.duty_cycle = 1.0;
        para.freq = 1000;
        for (int i = 0; i < 100; i++) {
            para.duty_cycle -= 0.01;
            aos_msleep(10);
            hal_pwm_para_chg(&pwm, para);
        }
    }

    hal_pwm_stop(&pwm);

    hal_pwm_finalize(&pwm);

    printf("hal_pwm_app_dynamic_out end!\r\n");
}
#endif

int application_start(int argc, char **argv)
{
    printf("BUILD_TIME:%s\n", __DATE__","__TIME__);
    sys_led_init();
    #ifdef BLUE_LED_PWM
    hal_pwm_app_dynamic_out();
    #endif
    while(1)
    {
        hal_gpio_output_toggle(&led_dev[0]);
        aos_msleep(1000);
    }
    return 0;
}

2.2 pwm.mk

点击查看详情
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
NAME := pwm

$(NAME)_COMPONENTS  += genie_app bluetooth.bt_host bluetooth.bt_mesh yloop cli

$(NAME)_INCLUDES += ../../../../genie_app \
					../../../../genie_app/base \
					../../../../genie_app/bluetooth/host \
					../../../../genie_app/bluetooth/mesh

$(NAME)_SOURCES  := pwm.c

ifeq ($(HOST_MCU_FAMILY),ch6121)
bt_host_tinycrypt = 0
else ifeq ($(HOST_MCU_FAMILY),tg7100b)
bt_host_tinycrypt = 0
else
ble = 1
bt_mesh = 1
endif
en_bt_smp = 1

# Host configurations
GLOBAL_DEFINES += CONFIG_BLUETOOTH
ifeq ($(HOST_MCU_FAMILY),ch6121)
GLOBAL_DEFINES += CONFIG_BT_RX_BUF_LEN=252
GLOBAL_DEFINES += CONFIG_BT_L2CAP_TX_MTU=244
GLOBAL_DEFINES += CONFIG_BT_MESH_ADV_BLOCK
else ifeq ($(HOST_MCU_FAMILY),tg7100b)
GLOBAL_DEFINES += CONFIG_BT_RX_BUF_LEN=252
GLOBAL_DEFINES += CONFIG_BT_L2CAP_TX_MTU=244
GLOBAL_DEFINES += CONFIG_BT_MESH_ADV_BLOCK
else
GLOBAL_DEFINES += CONFIG_BT_SMP
GLOBAL_DEFINES += CONFIG_BT_HCI_VS_EXT
GLOBAL_DEFINES += CONFIG_BT_TINYCRYPT_ECC
endif
GLOBAL_DEFINES += CONFIG_BT_CONN
#GLOBAL_DEFINES += CONFIG_BT_CENTRAL
GLOBAL_DEFINES += CONFIG_BT_PERIPHERAL
#GLOBAL_DEFINES += CONFIG_BLE_50


# Mesh function select
GLOBAL_DEFINES += CONFIG_BT_MESH
GLOBAL_DEFINES += CONFIG_BT_MESH_PROV
GLOBAL_DEFINES += CONFIG_BT_MESH_PB_ADV
GLOBAL_DEFINES += CONFIG_BT_MESH_PB_GATT
GLOBAL_DEFINES += CONFIG_BT_MESH_PROXY
GLOBAL_DEFINES += CONFIG_BT_MESH_GATT_PROXY
GLOBAL_DEFINES += CONFIG_BT_MESH_RELAY
#GLOBAL_DEFINES += CONFIG_BT_MESH_FRIEND
#GLOBAL_DEFINES += CONFIG_BT_MESH_LOW_POWER
#GLOBAL_DEFINES += CONFIG_BT_MESH_SHELL
#GLOBAL_DEFINES += CONFIG_BT_MESH_BQB
#GLOBAL_DEFINES += CONFIG_BT_MESH_IV_UPDATE_TEST

# Mesh foundation model select
GLOBAL_DEFINES += CONFIG_BT_MESH_CFG_SRV
GLOBAL_DEFINES += CONFIG_BT_MESH_HEALTH_SRV

# Mesh debug message enable
#GLOBAL_DEFINES += USE_BT_MESH_CUSTOM_LOG
GLOBAL_DEFINES += GENIE_DEBUG_COLOR
GLOBAL_DEFINES += MESH_DEBUG_RX
GLOBAL_DEFINES += MESH_DEBUG_TX
GLOBAL_DEFINES += MESH_DEBUG_PROV

#GLOBAL_DEFINES += CONFIG_INIT_STACKS
#GLOBAL_DEFINES += CONFIG_PRINTK

GLOBAL_INCLUDES += ../

GLOBAL_DEFINES += PROJECT_SW_VERSION=0x00010000
GLOBAL_DEFINES += PROJECT_SECRET_KEY=\"00112233445566770011223344556677\"

MESH_MODEL_GEN_ONOFF_SRV = 1
MESH_MODEL_DIABLE_TRANS = 1
#MESH_MODEL_LIGHTNESS_SRV = 1
#MESH_MODEL_CTL_SRV = 1
#MESH_MODEL_VENDOR_SRV = 1

ALI_SIMPLE_MODLE = 1

GLOBAL_DEFINES += GENIE_OLD_AUTH

3. 编译工程

1
aos make bluetooth.pwm@tc825x

4. 烧录程序

image-20231224202057014

5. 实验现象

image-20231224202202551

蓝灯会由亮变暗，再由暗变量重复10次，然后红灯开始闪烁。
